ezbass Posted November 3, 2020 Share Posted November 3, 2020 (edited) Given that we're going to be spending at least a month indoors and that my outside pursuit of chasing a small white ball around the countryside with a bag of sticks has been curtailed, I've decided to build myself a Fuzz Face clone. I love Eric Johnson's singing lead tone and have only recently realised that the main component of this is a Fuzz Face (all the EJ anoraks go, "Yeah, duh!") so this could be fun. I'll post photos and more details when it arrives, having only just pulled the trigger on this https://shop.pedalparts.co.uk/Fuzz_Face/p847124_4240480.aspx Edited November 15, 2020 by ezbass 1 Quote Link to comment Share on other sites More sharing options...
EdwardMarlowe Posted November 4, 2020 Share Posted November 4, 2020 Interested to see photos. I always thought it would be cool to rehouse a bunch of favourite pedals, give 'em a uniform look/size/shape and an air of mystery! Quote Link to comment Share on other sites More sharing options...

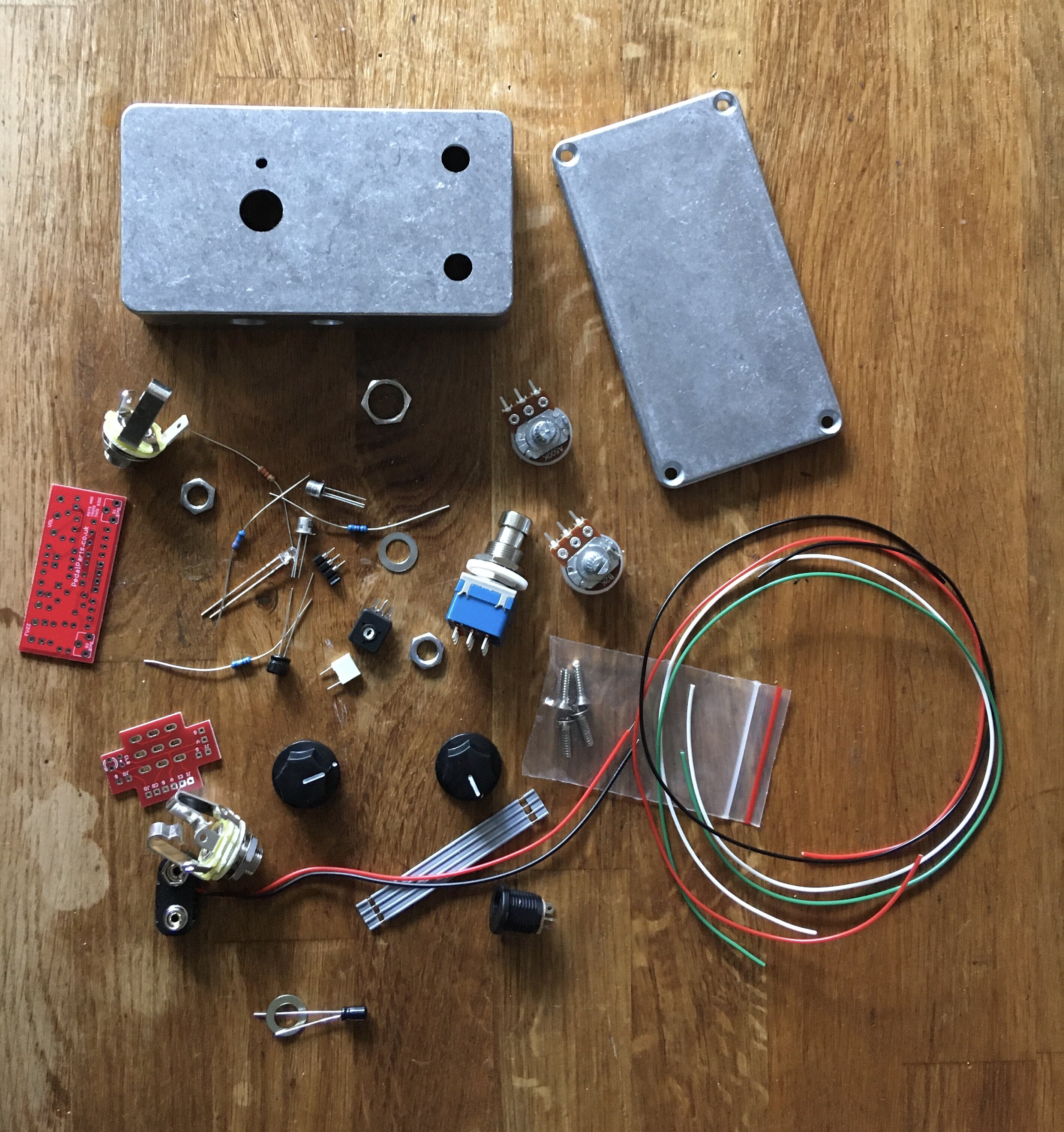

ezbass Posted November 5, 2020 Author Share Posted November 5, 2020 Kit arrived today. I was hoping that I might be able to stretch the build over a few days, but it looks very much like a one session affair. I’ll start tomorrow. 1 Quote Link to comment Share on other sites More sharing options...
Dad3353 Posted November 5, 2020 Share Posted November 5, 2020 It's a shame you've spilt the pieces all over the floor, though. ... 1 Quote Link to comment Share on other sites More sharing options...
ezbass Posted November 5, 2020 Author Share Posted November 5, 2020 7 minutes ago, Dad3353 said: It's a shame you've spilt the pieces all over the floor, though. ... Kitchen worktop (I hate them). Quote Link to comment Share on other sites More sharing options...

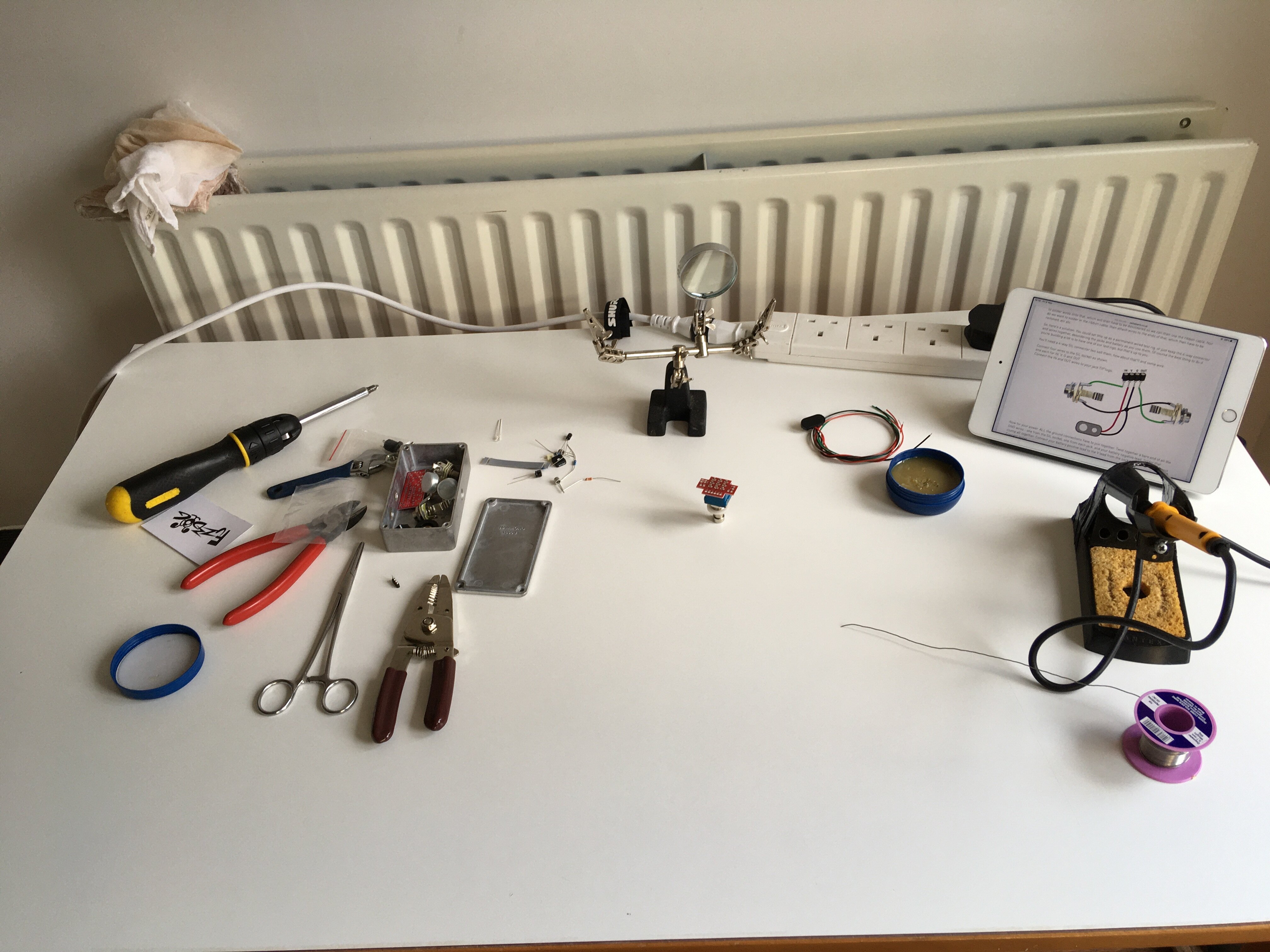

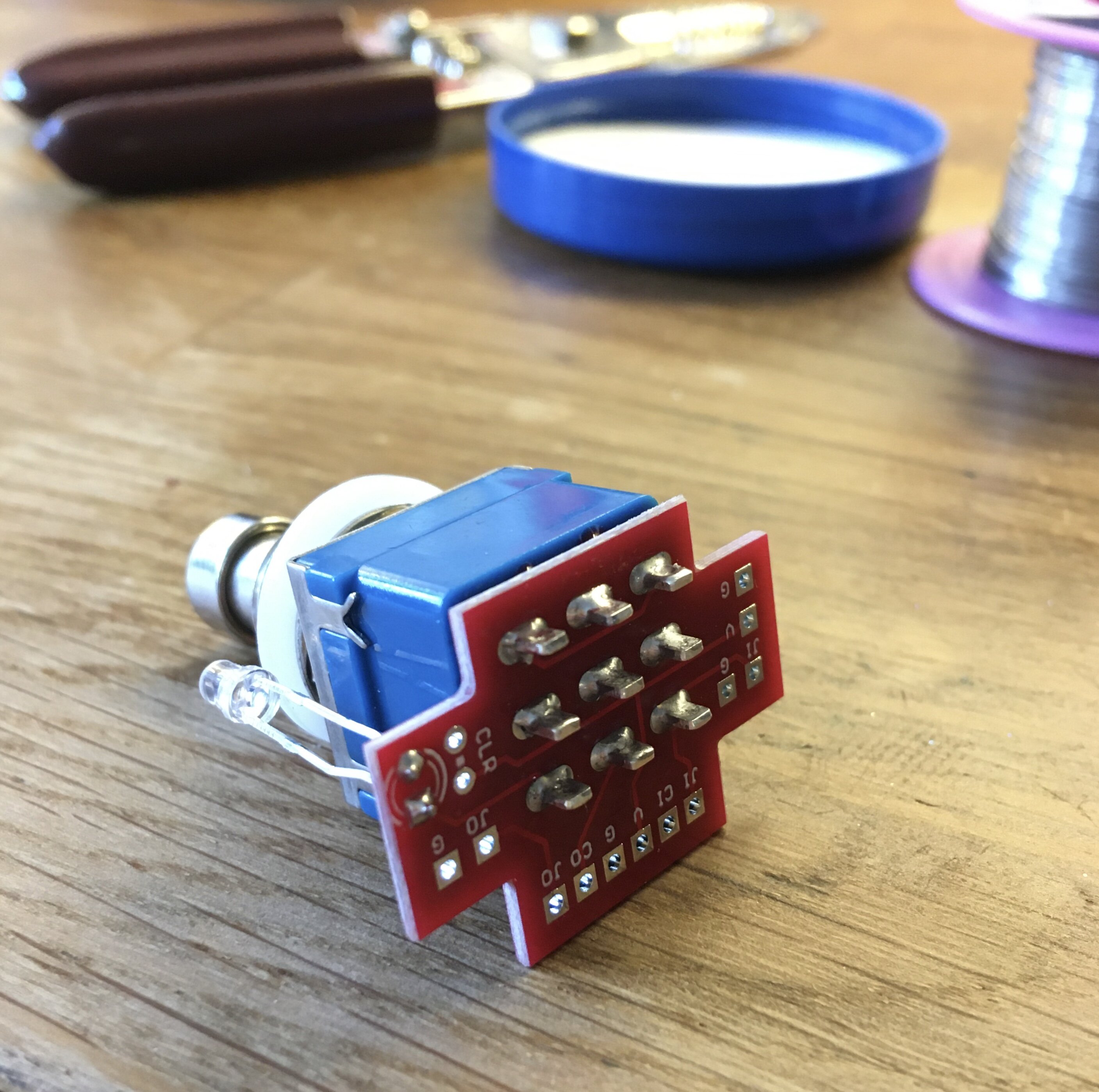

ezbass Posted November 6, 2020 Author Share Posted November 6, 2020 (edited) It begins... It's very fiddly and the instructions aren't the clearest, so I'm going to take my time and do some more another day. Edited November 6, 2020 by ezbass 1 Quote Link to comment Share on other sites More sharing options...

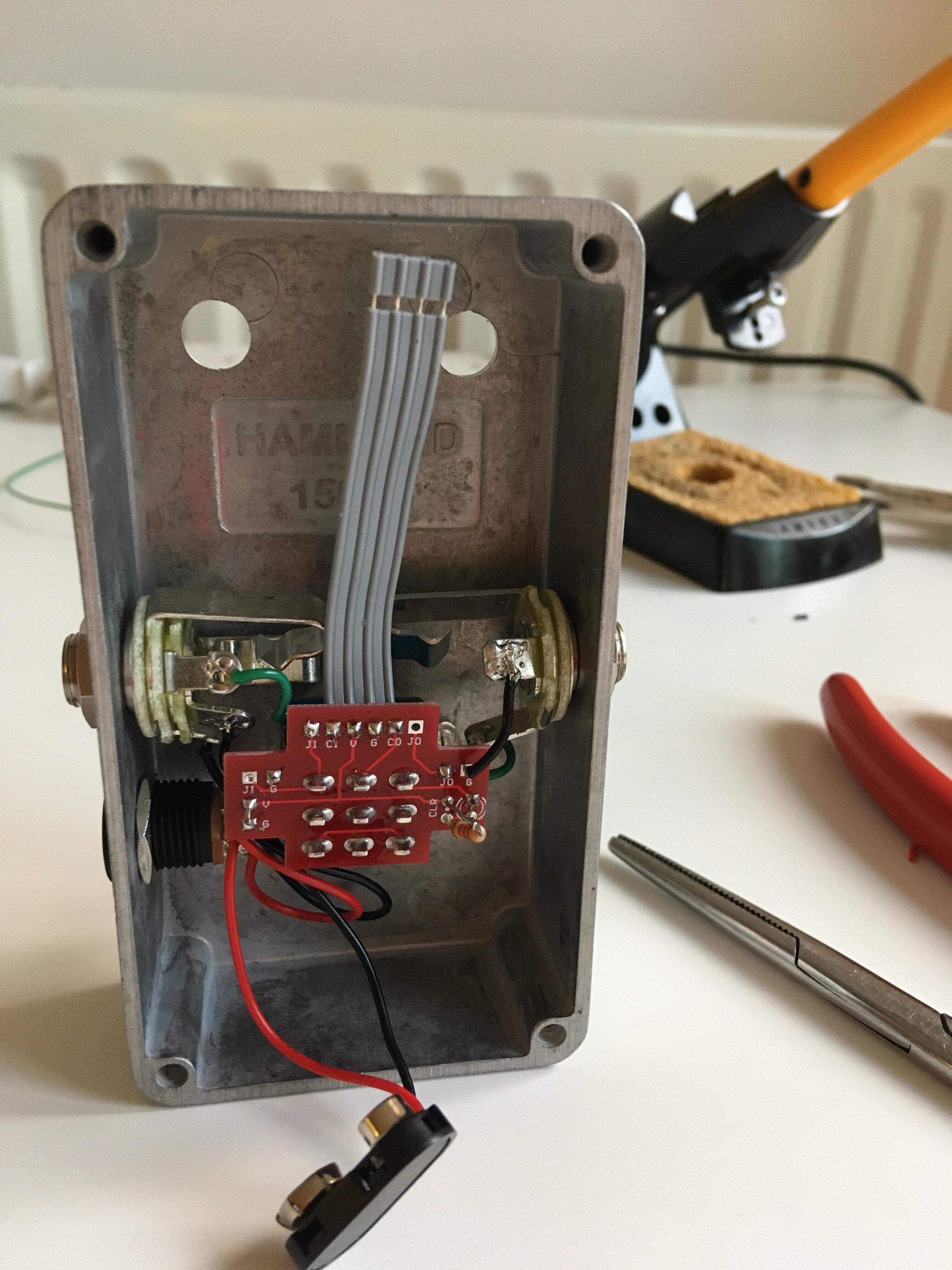

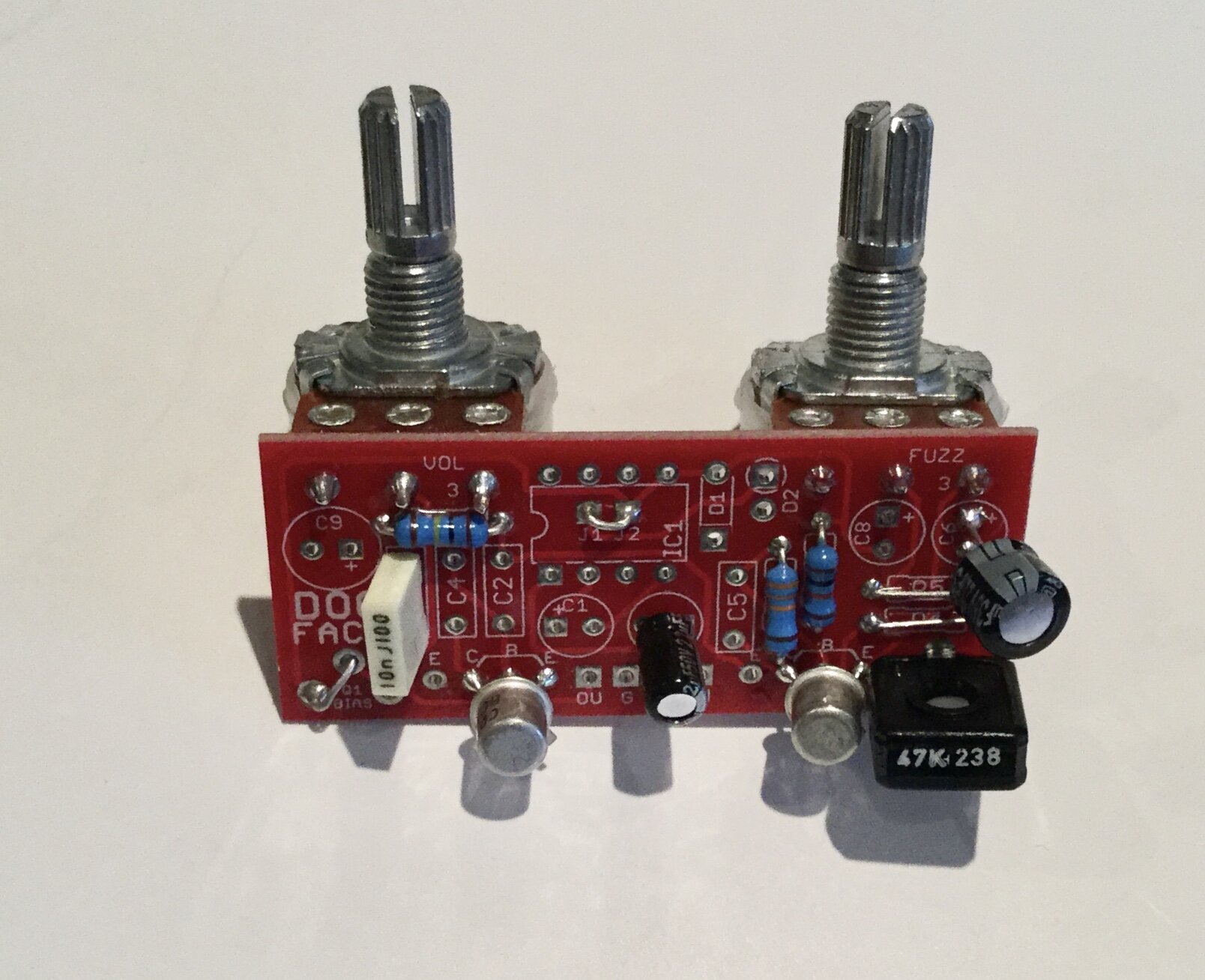

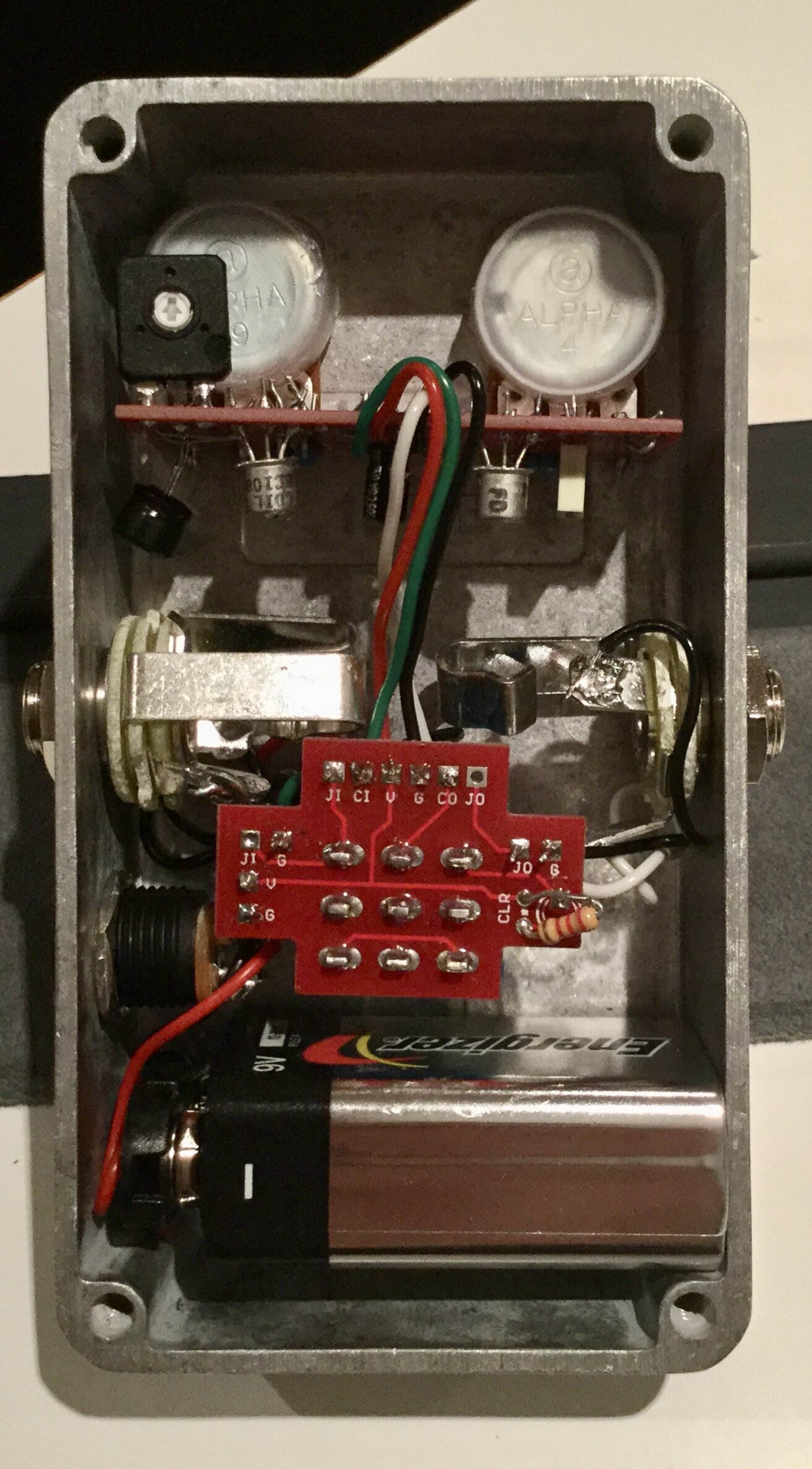

ezbass Posted November 9, 2020 Author Share Posted November 9, 2020 Wired and tested the main board today, it works! Still awaiting some smoothing caps, so no sound clips as yet. 3 Quote Link to comment Share on other sites More sharing options...

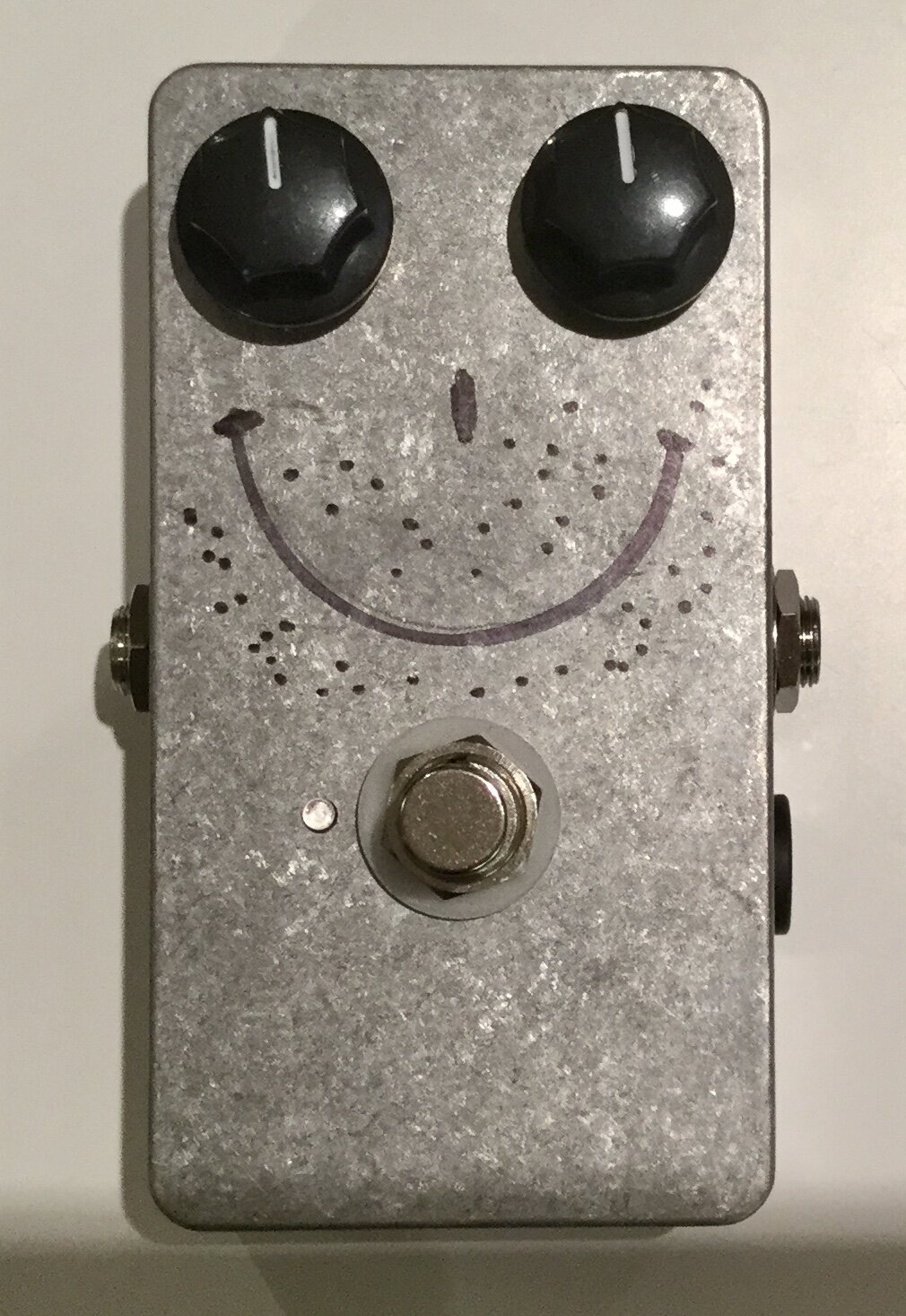

ezbass Posted November 14, 2020 Author Share Posted November 14, 2020 Short demo (forgive the playing). First clean, then full on (controls at 3 o'clock, 5 being max), followed by backing the guitar's vol control off a little at a time down to about 7. Then working back up again and then off/clean. Quote Link to comment Share on other sites More sharing options...
ezbass Posted November 15, 2020 Author Share Posted November 15, 2020 Now that’s done, I’ve ordered a tremolo pedal kit. Watch this space for more soldering shenanigans. 1 Quote Link to comment Share on other sites More sharing options...

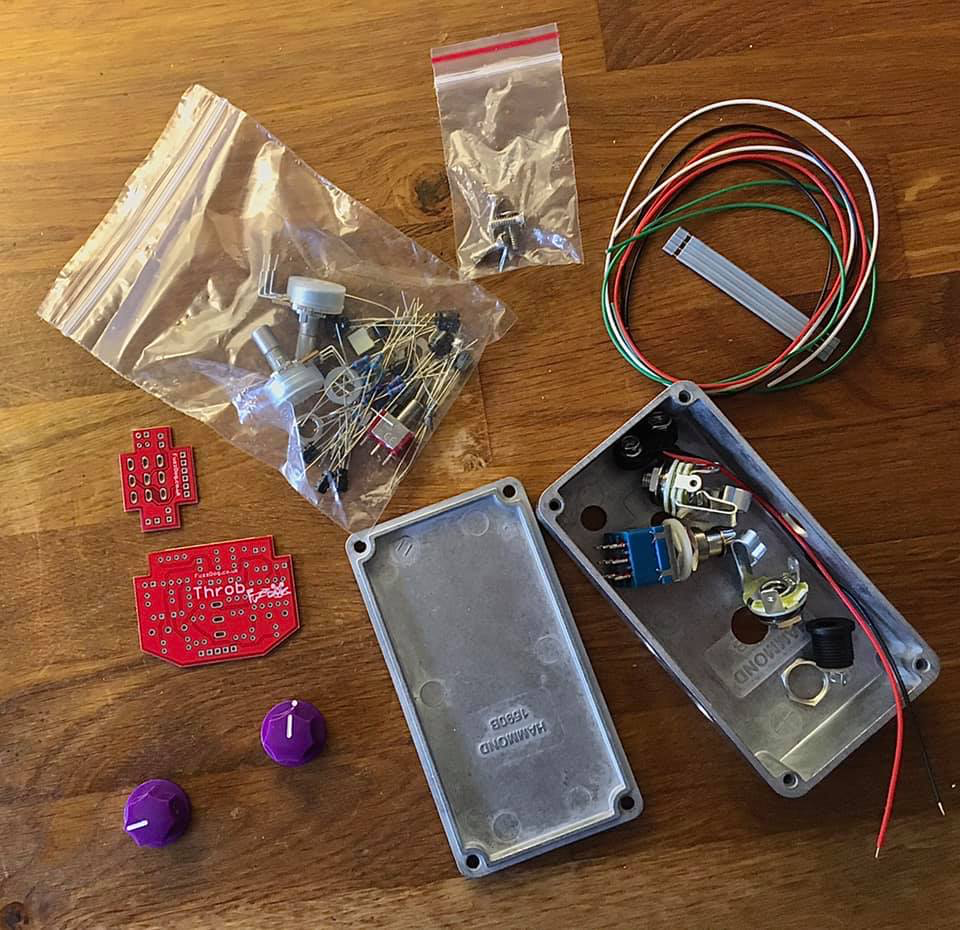

ezbass Posted November 20, 2020 Author Share Posted November 20, 2020 The Throb kit landed today. Just went through identifying the transistor values (painful job) and making sure everything in the parts list was present and correct. Some actual building can wait for another day. 1 Quote Link to comment Share on other sites More sharing options...

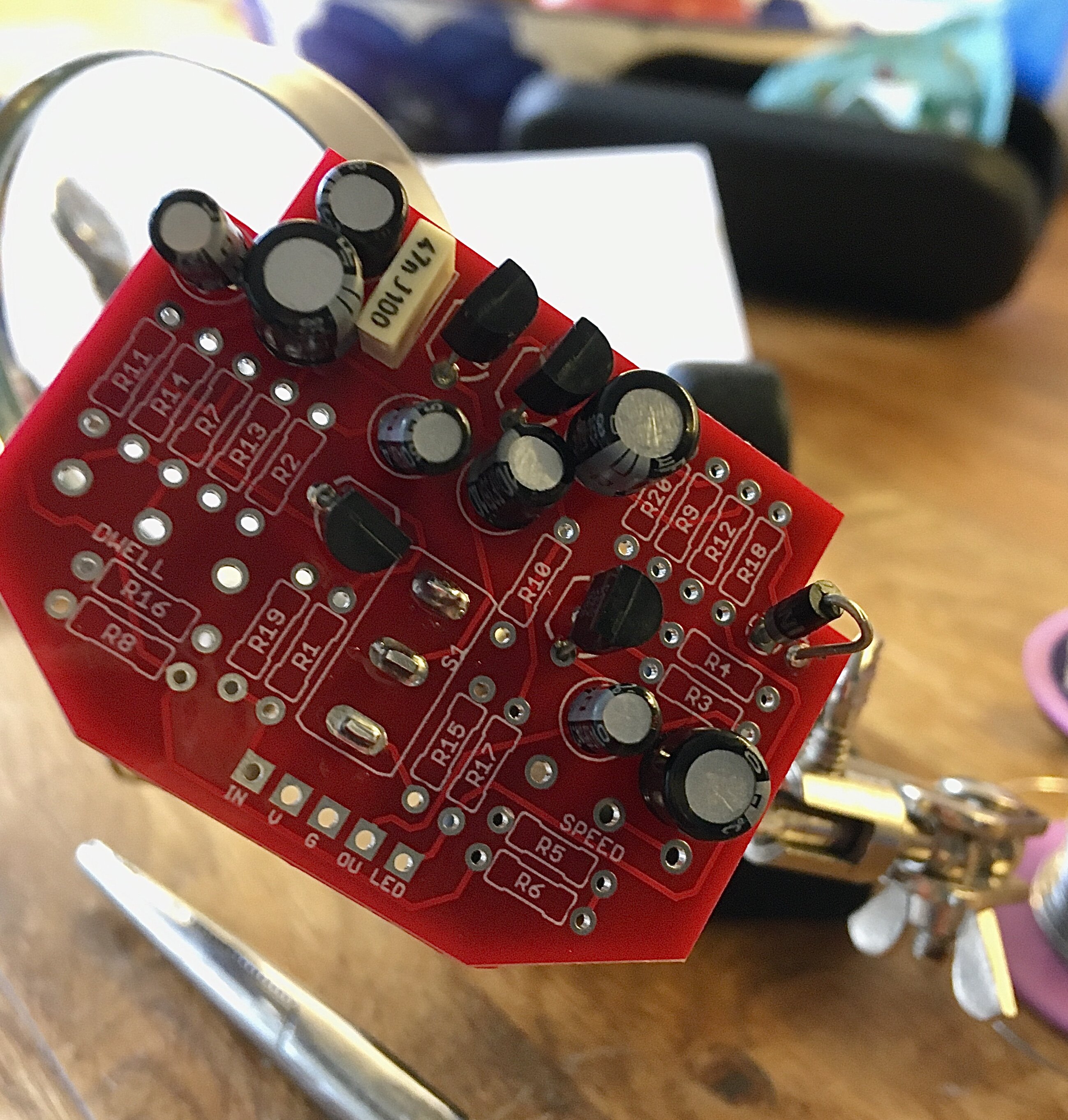

ezbass Posted November 22, 2020 Author Share Posted November 22, 2020 Today, just switches and caps. Quote Link to comment Share on other sites More sharing options...
ezbass Posted November 23, 2020 Author Share Posted November 23, 2020 Today, resistors, potentiometers and first test - “WOB WOB WOB” . Wired to footswitch and then... stop. Gotta leave something for tomorrow. 1 Quote Link to comment Share on other sites More sharing options...
ezbass Posted November 26, 2020 Author Share Posted November 26, 2020 All done! FullSizeRender.mov Quote Link to comment Share on other sites More sharing options...

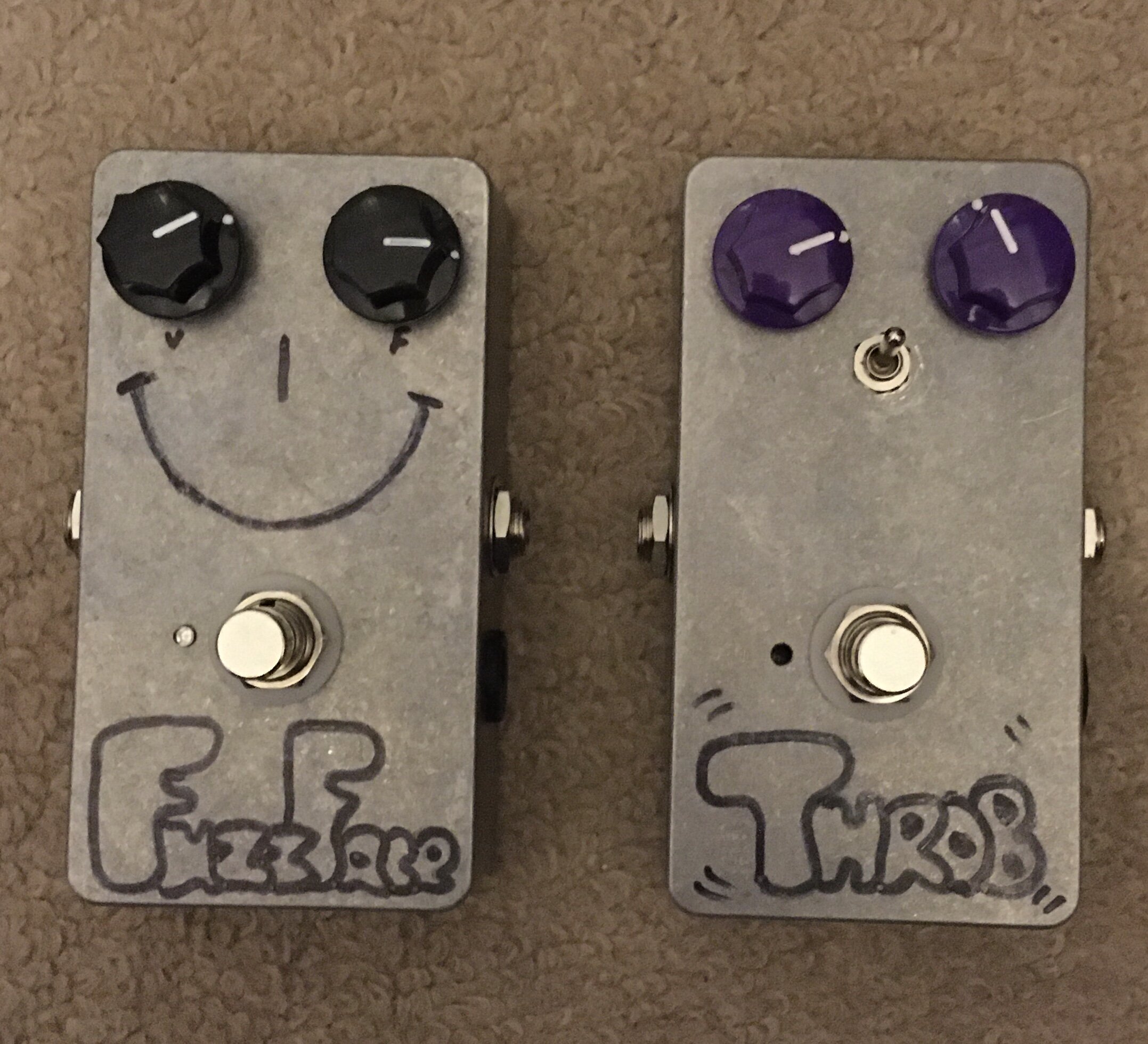

ezbass Posted November 26, 2020 Author Share Posted November 26, 2020 And the two together 2 1 Quote Link to comment Share on other sites More sharing options...
EdwardMarlowe Posted February 4, 2021 Share Posted February 4, 2021 Nice work! 1 Quote Link to comment Share on other sites More sharing options...
